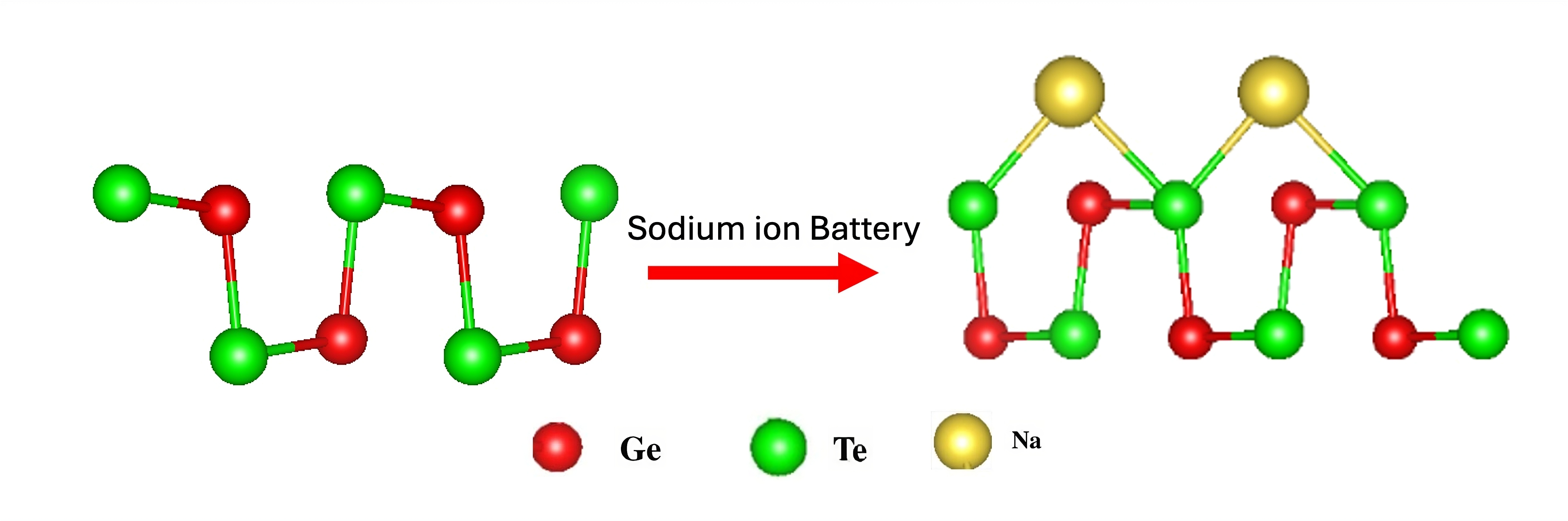

1. INTRODUCTION
Advances in portable electronic devices, smart grids, and electric vehicles have led to increased efficiency in energy storage systems 1,2. The most dominant green energy storage system used today is rechargeable batteries 3. There are several types of rechargeable batteries, such as lithium, sodium, potassium, and aluminum 4,5,6,7. Based on these battery types, lithium batteries show good performance compared to other battery types 8,9,10. Lithium batteries have advantages such as high energy density and good power density 11,12. However, the availability of lithium is limited, and the operational cost is expensive, so an alternative to lithium batteries is needed.
Sodium batteries are the most potential candidate as a replacement for lithium batteries 13,14,15,16,17,18,19. This is based on its low price and abundant availability in nature 17. In addition, sodium batteries have disadvantages including a larger atomic radius than lithium, low energy density, poor cycle life, and poor volume expansion during the charging/discharging process 20,21. So, to overcome these weaknesses, further development is needed on the electrode component 22. Electrode components consist of cathode, anode and SEI 23,24. Based on the three components, the anode has an important role in improving battery performance 25. In this study, germanium telluride (GeTe) is considered as a promising anode for sodium batteries 2,26,27,28. GeTe has been reported as an anode in batteries and other devices (such as electronic devices, thermoelectric, electrodes) 2,29,30,31. However, the issue of sodium atom adsorption mechanism on GeTe anode is still unclear.
Investigating the structure and phase of GeTe on sodium battery anodes can help to understand the mechanism that occurs. The structure used is monolayer because it has advantages such as high theoretical capacity, fast sodiation kinetics, able to increase stability, can reduce structural instability and electrolyte decomposition 9,11,12,15,27,32,33. The puckered phase is an option in designing anodes because it has good ion diffusion 2, shows high theoretical capacity and good cycle stability 34,35. Thus, the phase puckered monolayer structure has potential as a high-performance anode. Based on its potential, an understanding of adsorption and diffusion is needed. Therefore, this study varies the placement of Na atoms (such as top Ge, top Te, hollow Ge-Ge, hollow Te-Te, bridge upper, bridge lower and middle) to determine the adsorption and diffusion that occurs in monolayer phase puckered GeTe using density functional theory (DFT).
2. METHODS
In this study, the density functional theory was performed using Quantum ESPRESSO 36,37,which is aims to determine the adsorption and diffusion energy in puckered GeTe. The calculation parameters we set 50 Ry and 500 Ry for charge and wavefunction cutoff, respectively. We further set the convergence threshold by 10-8 Ry. In order to perform the calculation more accurately, we used the PBE3 functional with ONCV pseudopotential. We used a vacuum slab 15 Å to remove the interaction of the slab repetitions. The k-point mesh variation (6×6×1), (8×8×1), (10×10×1) and (2×2) unit cells.
To calculate the adsorption energy (Eads) the following equation was used,
where the total energy (Etotal) shows the energy of Na atoms adsorbed on the puckered GeTe monolayer, the surface energy (Esurface) shows the energy of the clean surface structure. Whereas the isolated energy (Eisolated) represents the energy of Na atoms during the vacuum state in the system. The Diffusion energies (Ediff) were calculated by compared between the most stable Eads with the nearest neighbor Eads.
To further understand the adsorption properties, we investigated the charge density of various sites of GeTe’s monolayer phase puckered structure using the equation of
where ρtotal is the charge density of Na atoms adsorbed on puckered GeTe, ρ surface is the charge density of clean surface puckered GeTe and ρ molecule is the charge density of isolated Na atoms.
3. RESULTS AND DISCUSSION
3.1 Clean Surface Phase Puckered GeTe

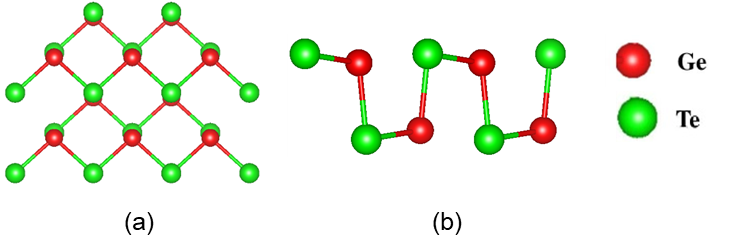

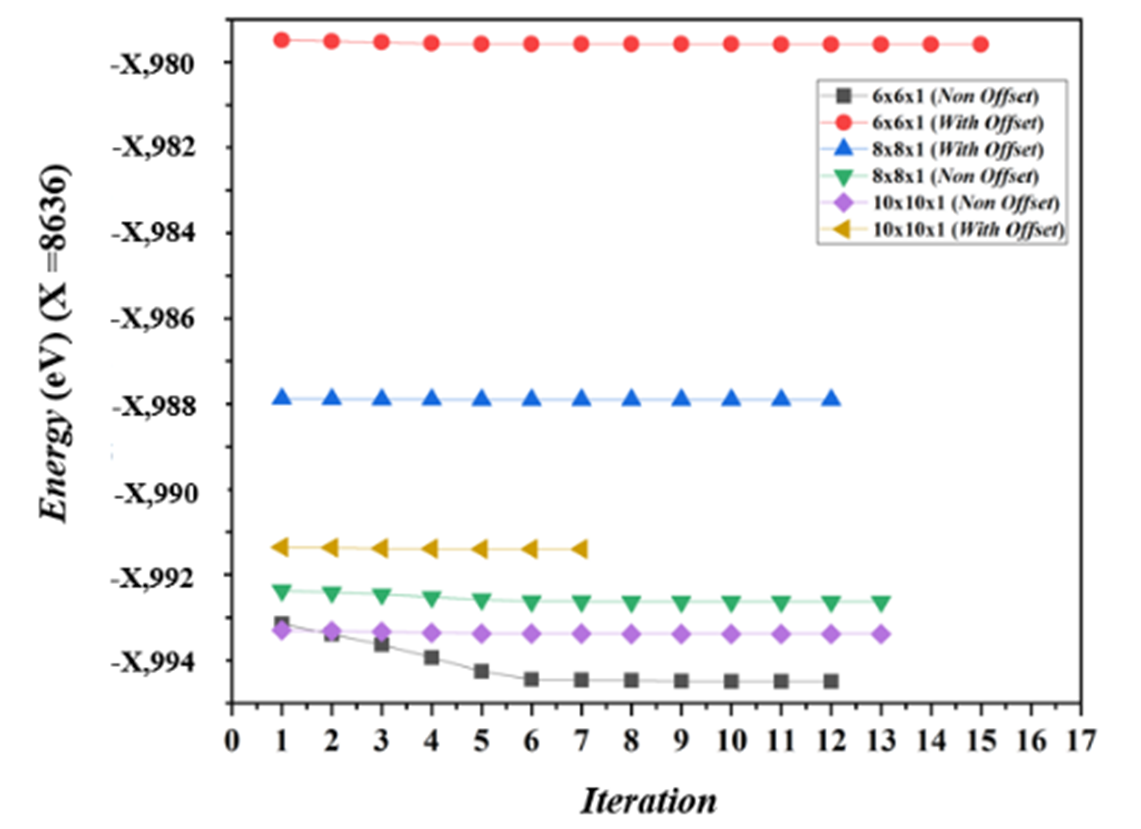

Phase puckered GeTe is a two-dimensional crystal structure. Puckered GeTe is formed due to a phase transition that is displacive in the GeTe honeycomb crystal. The displacive nature is the movement of atoms in the crystal lattice that forms the puckered phase. We investigated the clean surface (see Figure 1) with variation of k-point mesh and grid (non offset and with offset). The results show that k-point mesh with non offset grid has significant results in achieving equilibrium, and the k-point used is 6×6×1 (Figure 2).
3.2 Na Adsorption on Monolayer Phase Puckered GeTe

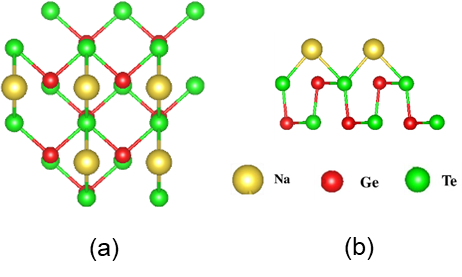

To determine the adsorption properties of Na atoms on the monolayer phase puckered GeTe structure, we consider various adsorption site, namely bridge, hollow, top and middle. Those sites are similar with previous research by putra et al. 38. At the top site, Na atoms are placed above Ge and Te atoms. Middle site, Na atoms are located in the middle of the structure. The placement of Na atoms at the bridge site is at the top and bottom of the structure, while at the hollow site Na atoms are in the Te-Te and Ge-Ge hollows. We found that the Te-Te hollow site is the most stable adsorption site, as seen in Figure 3. The calculated adsorption energies of the Te-Te hollow adsorption site are -1.25 eV. The minus adsorption energies represent a stronger interaction between Na atoms and puckered GeTe, and a negative value indicates an exothermic reaction. The distance between the surface (Te atom) and Na atom 3.198 until 3.358 Å. While the distance to the Ge atoms is around 0.2 Å larger than that Na-Te atoms distances. These indicated that the Na-Te or Na-Ge atom introduce similar interaction with the adsorbed atoms. These calculated results also in good agreement with the previous results, which mention the hollow site give the stronger adsorption energies 38.
Our calculated results further indicated that the Na atoms adsorbed on monolayer phase puckered GeTe show a change in bond length. Na-Te and Ge-Te are bonds that experience changes in bond length after optimization results. This change can explain the interaction between atoms related to the potential energy surface (PES) 39. According to the PES concept, the difference in bond length is caused by repulsion 40. The shorter bond length represents the repulsive force between atoms is stronger than the force of attraction, while the longer bond length applies the opposite.
The condition of Na atoms after optimization tends to interact with Te atoms. This is influenced by the atoms vibrating with each other. In our case, the size of the atomic radii (Na > Te > Ge) affects the vibrating atoms, the formation of bent bonds and the bond angles in Te-Na (see figure after optimization). In addition, we verified the bond length optimization calculation results with experimental results and reference DFT calculations.

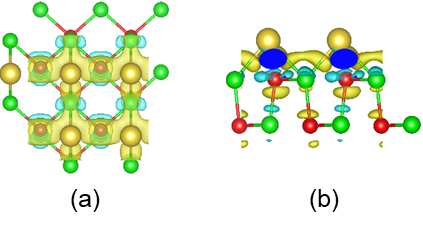

In order to explain the interaction between Na and the surface, we investigated the charge density difference. Figure 4 shows the charge density of the investigated sites. The cyan color represents the loss of electrons, and the yellow color represents the gain of electrons on the atom. The largest charge difference is located around the Na atom, while the adjacent atoms (Ge and Te) show excess charge. Thus, this structure has ionic characteristics.

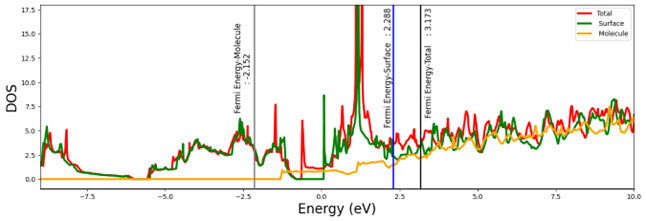

We also calculated the density of state (DOS) of various sites shown in Figure 5. After the clean surface structure is adsorbed by Na atoms, there is an increase in energy around the fermi area. The increase represents metallic properties that are beneficial in the conduction of electricity in the SIB anode. It can be observed that there is overlap between ρ total, ρ surface and ρ molecule which indicates covalent hybridization. The results of this investigation suggest that monolayer phase puckered GeTe is dominated by covalent bonds and ionic interactions.
3.3 Mechanism of Diffusion

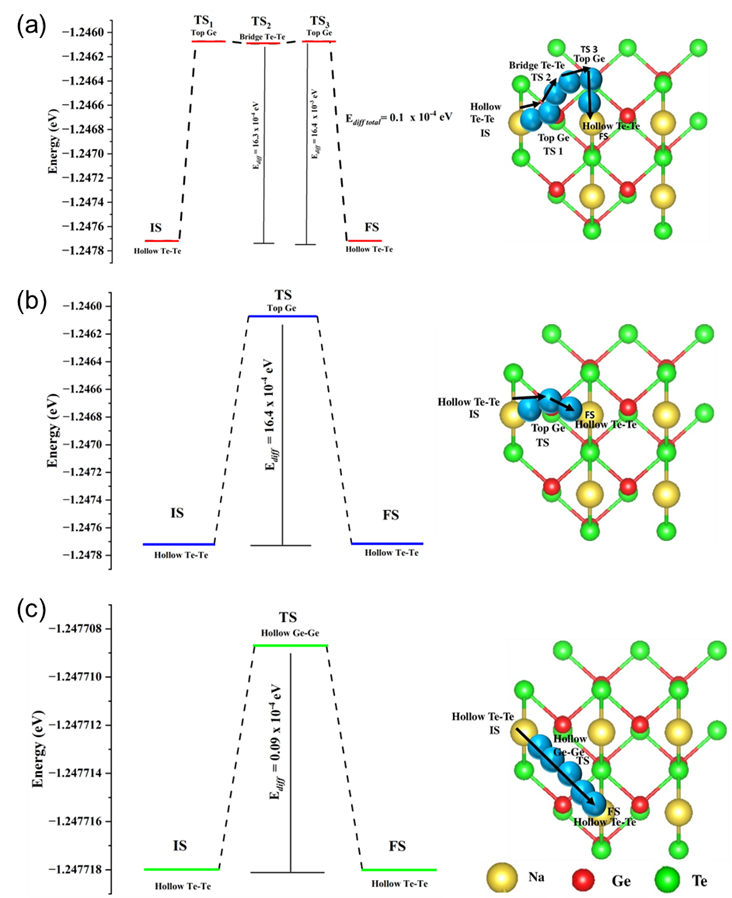

The diffusion energy values in Table 1 show that Na atoms can move from the most stable adsorption site as the initial state (hollow Te-Te) to the nearest neighbor site and to the final state (hollow Te-Te) through transition states such as top Te, hollow Ge-Ge, bridge Te-Te, bridge upper, top Ge, middle, bridge lower. Table 1 also shows that the diffusion scheme of Na atoms through hollow Ge-Ge gives the smallest diffusion energy (0.09 ×10-4 eV). In addition, diffusion at bridge Te-Te (16.3 ×10-4 eV), top Ge (16.4 ×10-4 eV), bridge upper (16.3 ×10-4 eV) sites shows the next most probable diffusion scheme. Based on the possible diffusion schemes occurring in Na-adsorbed puckered GeTe, the 3rd diffusion scheme (Figure 6(c)) becomes the most probable scheme due to the smallest diffusion energy. The diffusion mechanism in the 3rd scheme shows Na atoms moving through hollow Te-Te (initial state) and then through hollow Ge-Ge (transition state) to reach the final state. (hollow Te-Te).
| Diffusion schemes | Diffusion Energies (eV) |
|---|---|
| Hollow Te-Te to Bridge Te-Te | 16.3 × 10-4 |
| Hollow Te-Te to Bridge upper | 16.3 × 10-4 |
| Hollow Te-Te to Bridge lower | 239.5 × 10-4 |
| Hollow Te-Te to Top Ge | 16.4 × 10-4 |
| Hollow Te-Te to Hollow Ge-Ge | 0.09 × 10-4 |
| Hollow Te-Te to Middle | 238.7 × 10-4 |
| Hollow Te-Te to Top Te | 0.2 × 10-4 |
In the diffusion process, temperature is one of the parameters in influencing the diffusion mechanism so that it will have an impact on battery performance. Based on the Boltzman equation or thermal energy equation as follows.
Where Et is the thermal energy, kB is Boltzman’s constant, and T is the temperature. At 300 K the required thermal energy is 1.70112 ×10-2 eV/K. While in the 3rd scheme diffusion process with a diffusion energy of about 0.09 ×10-4 eV. This shows that Na atoms have diffused at 300 K. In addition, this study also considers the diffusion energy of other DFT-based materials. The energy comparison results in Table 1 show that monolayer phase puckered GeTe can be a high-performance sodium battery anode material.
4. CONCLUSION
We have successfully calculated the adsorption and diffusion energies of Na atom adsorption on GeTe puckered phase surface. We found that the Na-adsorbed hollow Te-Te structure is the most stable adsorption configuration (-1.25 eV). The diffusion mechanism that occurs has the lowest energy of 0.09 ×10-4 eV. These results suggest that the phase puckered GeTe monolayer has the potential as a high-performance sodium battery anode. Further investigations are needed to confirm the ability the GeTe as anode in sodium batteries.
